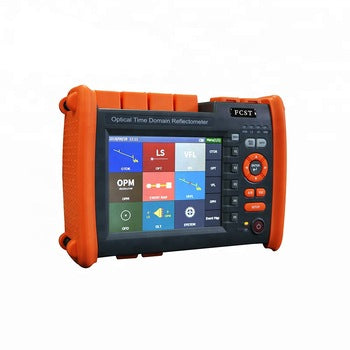

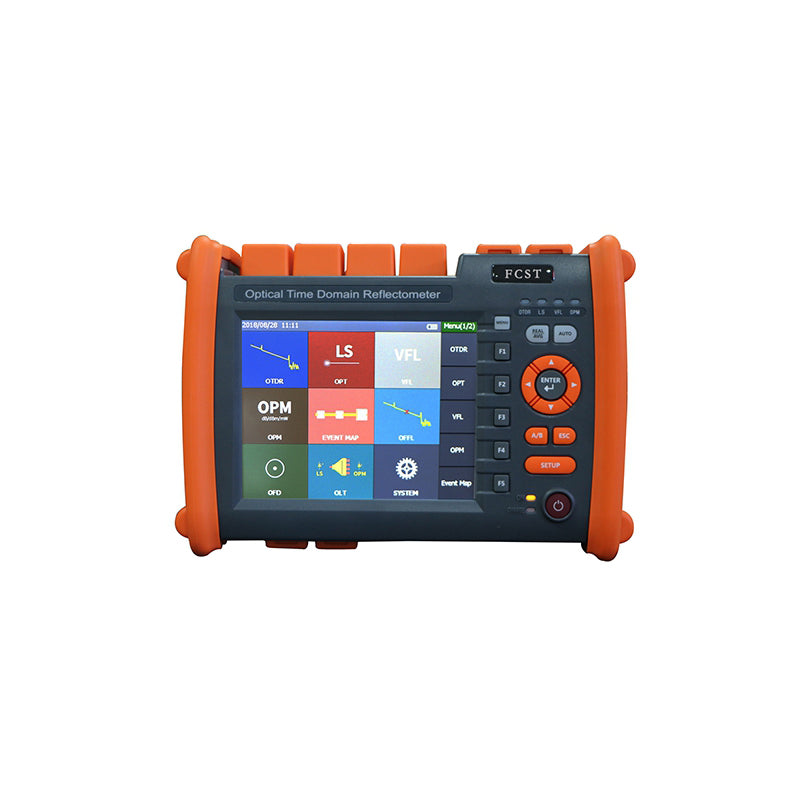

Fiber Optic Optical Domain Time Reflectometer 5.8 Inch LCD Touch Screen FCST080612-S1
Regular price
$2,999.00
Shipping calculated at checkout.
|
Product
Model |
OTDR
|
||||
|
S1
|
S2
|
S3
|
T1
|
T2
|
|
|
Type
|
Single-Mode
|
||||
|
Display
|
5.8 inch color LCD with touch screen
|
||||
|
Wave-length
|
1310/1550nm
|
1310/1490/1550nm
|
1310/1550/1625nm
|
||
|
Max.Dynamic Range
|
35/33dB
|
38/36dB
|
42/40dB
|
37/35/35dB
|
|
|
Event dead zone
|
1m
|
0.8m
|
|||
|
Attenuation Dead Zone
|
6m
|
||||
|
Distance range
|
500m/1Km/2Km/4Km/8Km/16Km/32Km/64Km/128Km/256Km
|
||||
|
Measuring Pulse Width
|
5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns
|
||||
|
Sampling point
|
256k
|
||||
|
Ranging Accuracy
|
±(0.75m+Sampling interval+0.005%×Test distance)
|
||||
|
Loss Precision
|
±0.05dB/dB
|
||||
|
Reflection Accuracy
|
±3dB
|
||||
|
Data Storage
|
≥2000 times
|
||||
|
Interface Type
|
FC/PC(Replaceable SC、ST)
|
||||
|
Communication Interface
|
USB mini-USB 10M/100M Ethernet
|
||||
|
VFL Output
|
≥5mW
|
||||
|
LS Output
|
≥5dBm
|
||||
|
OPM
|
+26dBm~-50dBm（Replaceable：+6dBm~-70dBm）
|
||||
|
Power Supply mode
|
AC/DC Adapter：AC：100v~240V 50/60Hz 0.6A；Lithium battery：7.4V 6700mAh
|
||||
|
Operating Temperature
|
-5℃~50℃
|
||||
|
Storage Temperature
|
-20℃~70℃
|
||||
|
Relative Humidity
|
0~95℃ Non condensation
|
||||
|
Weight
|
1.1kg
|
||||
|
Volume
|
227mm×160mm×70mm
|
||||
