FCST
Product Specifications
Standard Package

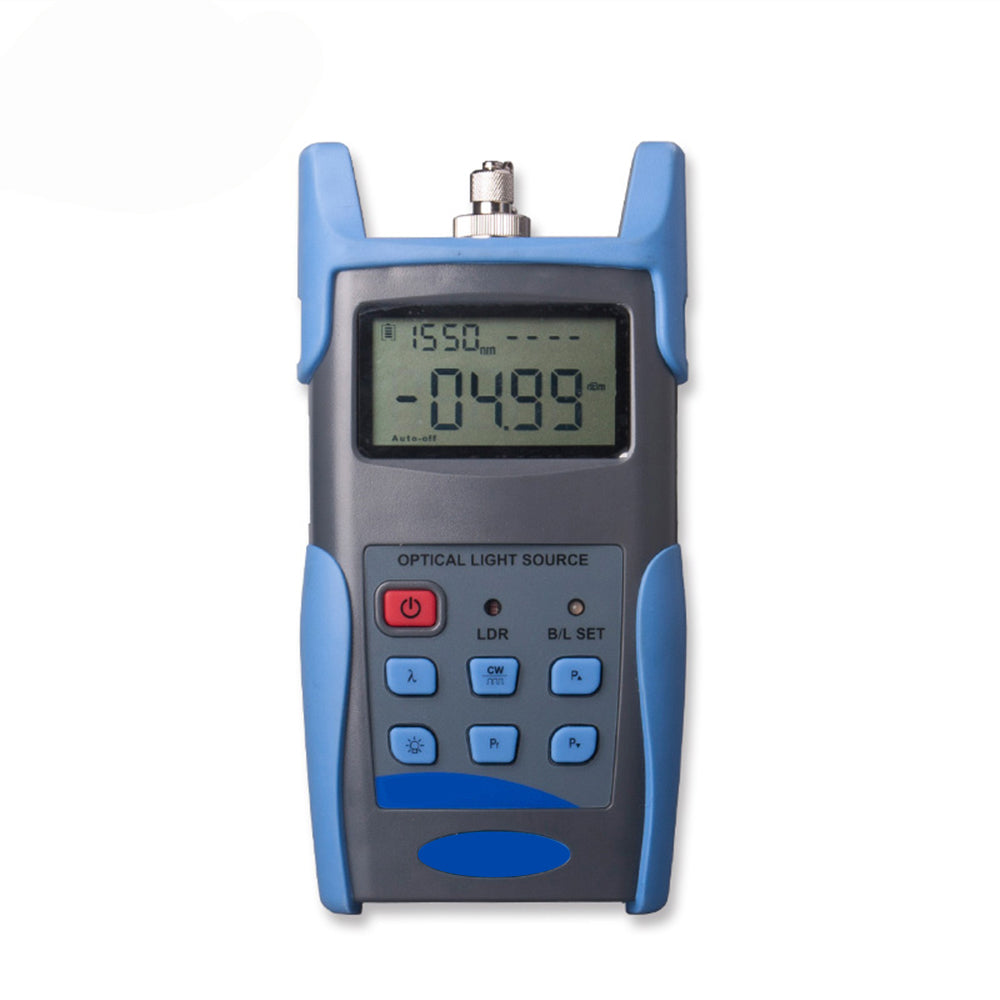

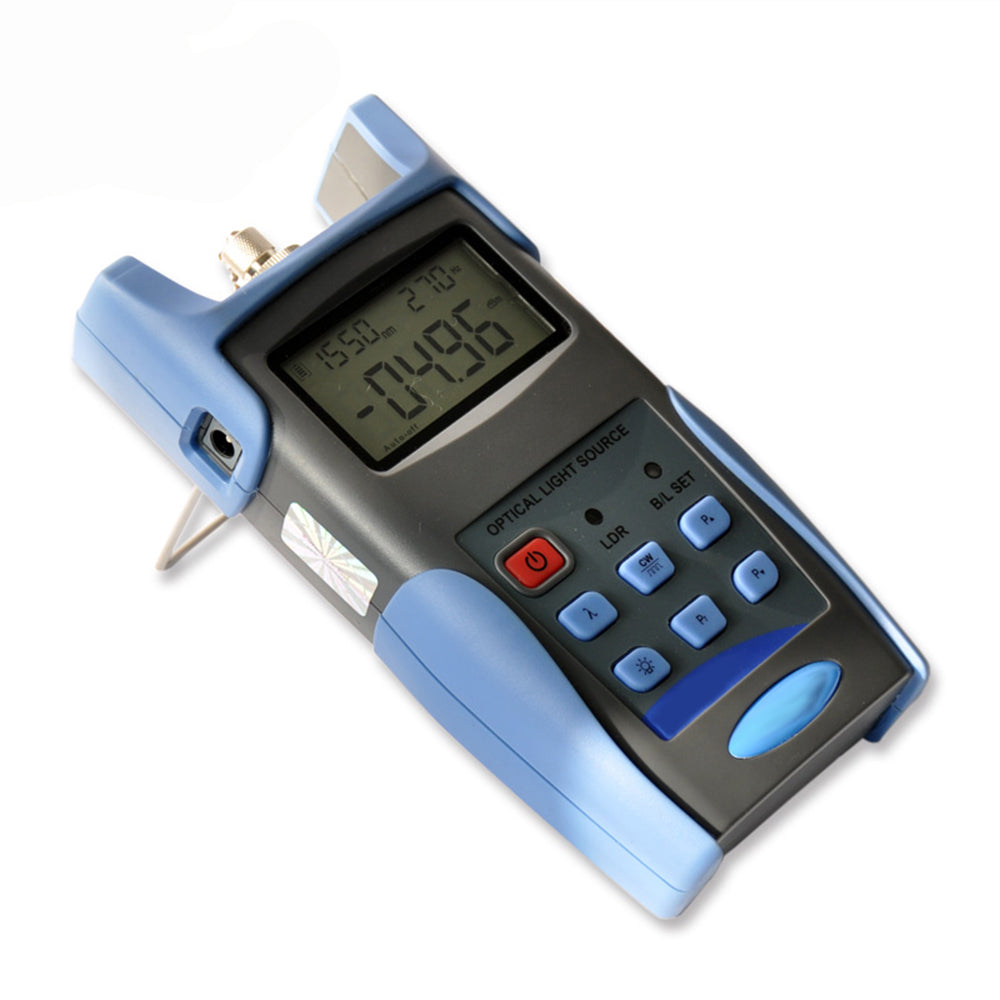

FCST080202 Handheld Adjustable Light Source
Regular price
$249.00
Shipping calculated at checkout.
Product Overview
FCST080202 Handheld Adjustable Light Source is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with 3216 handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The FCST080202 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the FCST080202 features good appearance, good touch feeling and considerate humanity design.
Product Features
Tone generation, 270HZ,330HZ,1KHZ,2KHZ
Output power can be adjustable
Output power value is shown on LCD display
light, which greatly reduced power consumption)
AA alkaline and AC adapter for power supply
Low battery indication
Wave ID information can be transmitted when used with FCST080104 Optical Power Meter.
Intelligent backlight control (light intensity can be adjusted properly according to ambient
Product Specifications
| Model | FCST080202 |
| Operating wavelength（nm） | 1310/1550;1310/1490/1550/1625（others specify on requests） |
| Applicable fiber | SM，MM |
| Laser type | FP-LD(others specify on requests) |
| Output Power（dBm） | -5~-12dBm（can be adjustable） |
| Adjustable step size（dBm） | ＜0.5 |
| Stability(dB，30min，20℃) | 0.15 |
| Modulation（Hz） | CW， 270，330，1K，2K |
| Fiber Port | FC/PC |
| Alkaline Battery | 3*AA，1.5V |
| Power Supply Adaptor(V) | 8.4 |
| Battery Operating time(h) | 45 |
| Operation Temperature(℃) | -10～+60 |
| Storage Temperature(℃) | -25～+70 |
| Outline size（mm）/weight | 180*90*45(250g) |
Standard Package
| Model | Includes |
| All FCST080202 Models | FCST080202 Optical Light Source, 3pcs 1.5V batteries, AC Adaptor, User Manual and Soft carrying case. |
